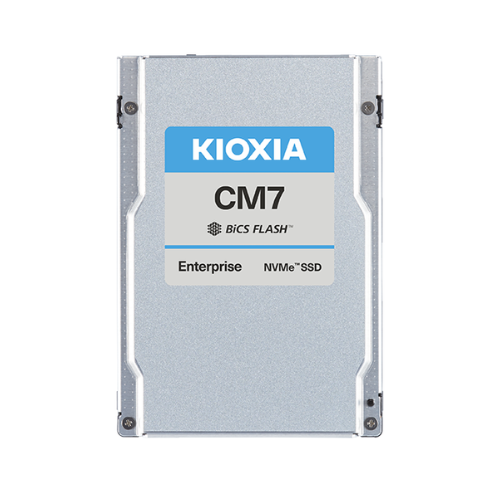

Kioxia CM7-R 30.72TB 2.5" PCIe 5.0 SDF7000GEA Base Non-SED SSD

Kioxia CM7-R 30.72TB 2.5" PCIe 5.0 SDF7000GEA Base Non-SED SSD

Regular price €696,95 EUR
Regular price Sale price €696,95 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.
Encryption
Capacity

Key Features

  • PCIe® 5.0, NVMe™ 2.0 specification compliant
  • Open Compute Project Datacenter NVMe™ SSD specification v2.0 support (not all requirements)
  • Form factor: 2.5-inch, 15 mm thickness
  • Proprietary KIOXIA architecture: controller, firmware and 112-layer BiCS FLASH™ 3D TLC
  • SFF-TA-1001 conformant (U.3)
  • Dual-port design for high availability applications
  • High performance with lower power consumption
  • Power loss protection (PLP) and end-to-end data protection
  • Suited for 24x7 enterprise workloads
  • Security options: SIE, SED, FIPS SED[1][2][3][4][5]

Applications

  • Software defined storage and virtualization
  • Data warehousing
  • Online transaction processing (OLTP)
    (transactional and relational databases)
  • Business intelligence
  • Artificial intelligence and machine learning

Kioxia CM7-R 30.72TB 2.5" PCIe 5.0 SDF7000GEA Base Non-SED SSD

Enterprise NVMe Read Intensive SSD


KIOXIA CM7-R Series is a read intensive SSD that is optimized to support a broad range of enterprise applications and associated workloads, including business intelligence, online transaction processing, and software defined storage and virtualization. Built on PCIe 5.0 and NVMe 2.0 technology, the CM7 Series SSDs deliver excellent performance up to 2,700K IOPS (random read) and 310K IOPS (random write).


Featuring KIOXIA 112-layer BiCS FLASH 3D TLC flash memory, the CM7-R Series of enterprise NVMe SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and support storage capacities up to 30.72 TB, making them ideally suited for read intensive enterprise applications.


Base Non-SED Model

Manufacturer Part Number

KCMY1RUG30T7

Capacity
30,720 GB


Basic Specifications
Form Factor
2.5-inch, 15mm thickness

lnterface
PCIe 5.0, NVMe 2.0

Maximum Interface Speed
128 GT/s (PCIe Gen5 single x4, dual x2)

Flash Memory Type
BiCS FLASH TLC


Performance in single port (1x4) mode (Up to)
Sustained 128 KiB Sequential Read
10,000 MB/s

Sustained 128 KiB Sequential Write
4,900 MB/s

Sustained 4 KiB Random Read
1,600K IOPS

Sustained 4 KiB Random Write
150 IOPS


Power Requirements
Supply Voltage
12 V +/- 10 %, 3.3 V +/- 15 %

Power Consumption (Active)
25 W typ.

Power Consumption (Ready)
5.5 W typ.


Reliability
MTTF
2,500,000 hours

DWPD
1


Environmental
Temperature (Operating)
oC to 72 oC

Temperature (Non-operating)
-40 oC to 85 oC

Humidity (Operating)
5 % to 95 % R.H.

Vibration (Operating)
21.27 m/s2 2.17 Grms ( 5 to 800 Hz )

Shock (Operating)
9.8 km/s2 1,000 G ( 0.5 ms )

Item Dimension (L" x W" x H")
4 x 3 x 1

Weight
1 lb

Warranty Information
5 Years
