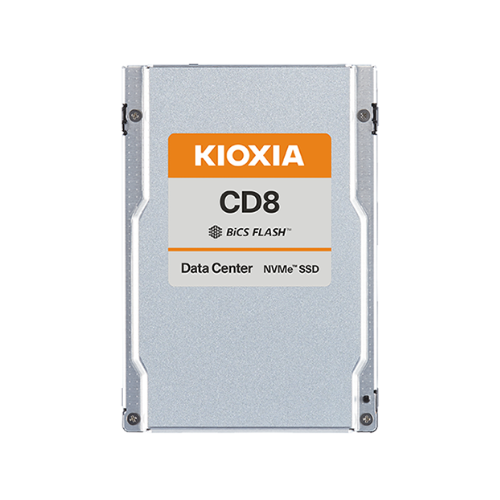

Kioxia CD8-R 960GB 2.5" PCIe 4.0 SDF1E86GEB SIE SSD

Kioxia CD8-R 960GB 2.5" PCIe 4.0 SDF1E86GEB SIE SSD

Data Center NVMe™ Read Intensive SSD

Key Features

• PCIe® 4.0, NVMe™ 1.4 specification compliant

• Open Compute Project Datacenter NVMe™ SSD specification v2.0 support (not all requirements)

• Form factor: 2.5-inch, 15mm thickness

• Proprietary KIOXIA architecture: controller, firmware and 112-layer BiCS FLASH™ 3D TLC

• Single-port design, optimized for data center class workloads

• Consistent performance and reliability for demanding 24x7 environments

• Designed for high-density storage deployments

• Power loss protection (PLP) and end-to-end data correction

• Security options: SIE, SED



Key Applications

• Hyperscale

• IoT and big data analytics

• Online transaction processing (OLTP)

(transactional and relational databases)

• Virtualized environments

• Streaming media and content delivery networks

SIE

Model Number
KCD8XRUG960G

Capacity
960 GB

Basic Specifications
Form Factor
2.5-inch, 15mm thickness

lnterface
PCIe 4.0, NVMe^TM 1.4

Maximum Interface Speed
64 GT/s (PCIe Gen4 x4)

Flash Memory Type
BiCS FLASH^TM TLC

Performance (Up to)
Sustained 128 KiB Sequential Read
7,200 MB/s

Sustained 128 KiB Sequential Write
1,800 MB/s

Sustained 4 KiB Random Read
1,000K IOPS

Sustained 4 KiB Random Write
80K IOPS

Power Requirements
Supply Voltage
12 V +/- 10 %, 3.3 V +/- 15 %

Power Consumption (Active)
11 W typ.

Power Consumption (Ready)
5 W typ.

Reliability
MTTF
2,500,000 hours

DWPD
1

Environmental
Temperature (Operating)
0 ^oC to 75 ^oC

Temperature (Non-operating)
-40^oC to 85 ^oC

Humidity (Operating)
5 % to 95 % R.H.

Vibration (Operating)
21.27 m/s² ( 2.17 Grms ) ( 5 to 800 Hz )

Shock (Operating)
9.8 km/s2² ( 1,000 G ) ( 0.5 ms )

Item Dimension (L inch x W inch x H inch)
4 x 3 x 1

Weight
1 lb

Warranty Information
5 Years
