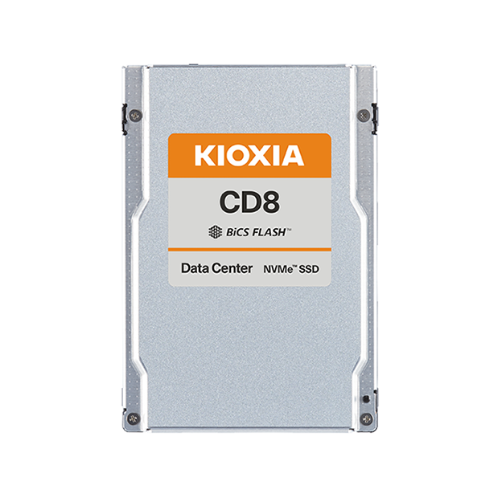

Kioxia CD8-V 3.2TB 2.5" PCIe 4.0 SDF1D84GEB SIE SSD

Data Center NVMe™ Mixed Use SSD


KIOXIA CD8-V Series is a mixed use data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing and virtualization. Built with a PCIe® 4.0 (16 GT/s x4) interface, the CD8-V Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 380K IOPS (random write).


Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, the CD8-V 2.5-inch form factor SSDs deliver 3 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 12.8 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.

SIE

Model Number
KCD8XVUG3T20
Capacity
3,200 GB

Basic Specifications
Form Factor
2.5-inch, 15mm thickness
lnterface
PCIe 4.0, NVMe^TM 1.4
Maximum Interface Speed
64 GT/s (PCIe Gen4 x4)
Flash Memory Type
BiCS FLASH^TM TLC

Performance (Up to)
Sustained 128 KiB Sequential Read
7,200 MB/s
Sustained 128 KiB Sequential Write
3,800 MB/s
Sustained 4 KiB Random Read
1,250K IOPS
Sustained 4 KiB Random Write
340K IOPS

Power Requirements
Supply Voltage
12 V +/- 10 %, 3.3 V +/- 15 %
Power Consumption (Active)
14 W typ.
Power Consumption (Ready)
5 W typ.

Reliability
MTTF
2,500,000 hours
DWPD
3

Environmental
Temperature (Operating)
0 ^oC to 75 ^oC
Temperature (Non-operating)
-40 ^oC to 85 ^oC
Humidity (Operating)
5 % to 95 % R.H.
Vibration (Operating)
21.27 m/s² ( 2.17 Grms ) ( 5 to 800 Hz )
Shock (Operating)
9.8 km/s² ( 1,000 G ) ( 0.5 ms )
Item Dimension (L inch x W inch x H inch)
4 x 3 x 1

Weight
1 lb

Warranty Information
5 Years
