Kioxia

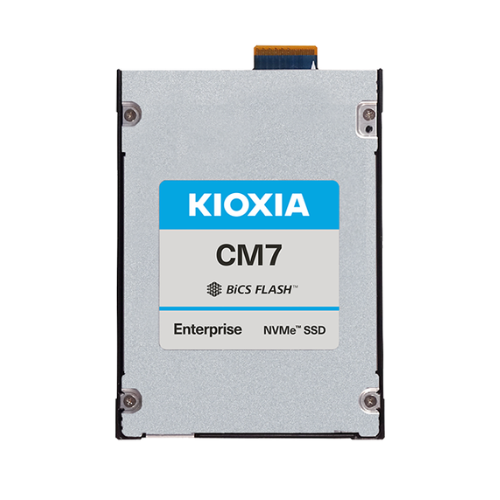

Kioxia CM7-V 3.2TB E3.S PCIe 5.0 SDF4Y44GEB SED SSD

Kioxia CM7-V 3.2TB E3.S PCIe 5.0 SDF4Y44GEB SED SSD

Regular price €1.313,95 EUR
Regular price Sale price €1.313,95 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

Kioxia CM7-V 3.2TB E3.S PCIe 5.0 SDF4Y44GEB SED SSD

Enterprise NVMe™ Mixed-Use SSD


KIOXIA CM7-V Series is a mixed use SSD that is optimized to support a broad range of enterprise applications and associated workloads, including high performance computing, online transaction processing, IoT and edge computing, media streaming. Built on PCIe® 5.0 and NVMe™ 2.0 technology, the CM7 Series SSDs deliver excellent performance up to 2,700K IOPS (random read) and 600K IOPS (random write).


Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, the CM7-V Series of enterprise NVMe™ SSDs deliver 3 DWPD (Drive Writes Per Day) of endurance and support storage capacities up to 12.8 TB, making them ideally suited for read and write mixed use enterprise applications.


SED Model

Manufacturer Part Number
KCM7DVJE3T20
Capacity
3,200 GB


Basic Specifications
Form Factor
E3.S, 7.5mm thickness

lnterface
PCIe 5.0, NVMeTM 2.0

Maximum Interface Speed
128 GT/s (PCIe Gen5 single x4, dual x2)

Flash Memory Type
BiCS FLASHTM TLC


Performance in single port (1x4) mode (Up to)
Sustained 128 KiB Sequential Read
14,000 MB/s

Sustained 128 KiB Sequential Write
6,750 MB/s

Sustained 4 KiB Random Read
2,700K IOPS

Sustained 4 KiB Random Write
600K IOPS


Power Requirements
Supply Voltage
12 V +/- 10 %, 3.3 V +/- 15 %

Power Consumption (Active)
24 W typ.

Power Consumption (Ready)
5 W typ.


Reliability
MTTF
2,500,000 hours

DWPD
3


Environmental
Temperature (Operating)
oC to 76 oC

Temperature (Non-operating)
-40 oC to 85 oC

Humidity (Operating)
5 % to 95 % R.H.

Vibration (Operating)
21.27 m/s2 ( 2.17 Grms ) ( 5 to 800 Hz )

Shock (Operating)
9.8 km/s2 ( 1,000 G ) ( 0.5 ms )


Item Dimensions
Thickness

7.5 mm +0.2 / -0.5 mm

Width

76 mm ± 0.25 mm

Length

112.75 mm ± 0.4 mm

Weight
110g Max

Warranty Information
5 Years
