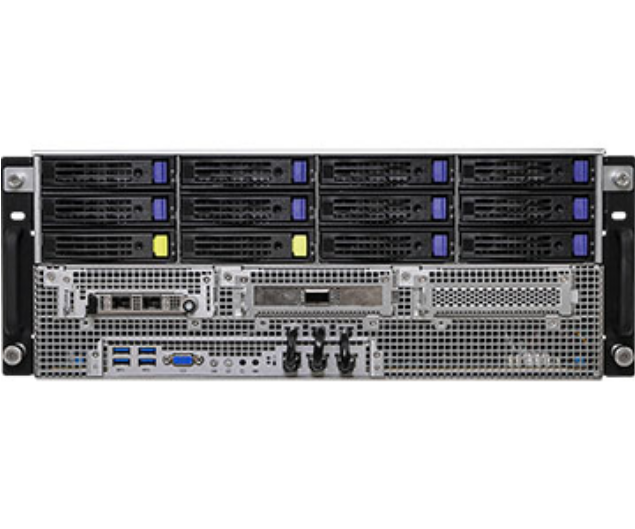

4U8G-ROME2/2T
4U Rackmount with 3+1 Redundant 1600W CRPS
Dual Socket (LGA 4094), support Dual AMD EPYC 7003 and 7002 Series Processors
16+16 DIMM slots, support DDR4 RDIMM/ LRDIMM
12 hot-swap 3.5" drive bays
Supports up to 8 dual-slot PCIe4.0 x16
Front side 1 FHHL PCIe4.0 x8 and OCP NIC 3.0, optional OCP2.0 mezzanine cards support
On-board dual 10GbE RJ45 by Intel X550-AT2 System
Form Factor
4U Rackmount
Support MB
ROME2D32GM-2T
Front Panel
Buttons
Power button w/ LED
Reset button
NMI button
UID button w/ LED
LEDs
System fault LED
HDD activity LED
I/O Ports
1 DB15 (VGA)
4 USB Type-A (USB3.2 Gen1)
2 RJ45 (10GbE) by Intel X550-AT2, shares with Rear Panel I/O
IPMI LAN
1 dedicated IPMI LAN, shares with Rear Panel I/O
External Drive Bay / Storage
Front Side Drive Bay
12 Hot-swap 3.5" drive bays,
supports 2 NVMe (PCIe4.0 x4) drives additional 2 NVMe drives possible by cable reconfiguration
supports 8 SAS/SATA drives by additional PCIe 8-port RAID/HBA card
Front Side Backplane
three 4-port NVMe/SAS/SATA passive backplanes
Internal Side
1 M-key (PCIe4.0 x4) supports 22110/2280 form factor
Power Supply
Type
3+1 CRPS
Output Watts
1600W
Efficiency
80-PLUS Platinum
AC Input
Lowline: 100-127V, Highline: 200-240V
System Fan
Fan
5 Middle Hot-swap 80x80mm fans, 5 Rear Hot-swap 80x38mm fans
Fail LED
Abnormal(DC on): LED ON (Solid Red)
Normal: LED OFF
GPGPU card
GPGPU Watts
max. 350W per card
Support GPGPU
NVIDIA A100 PCIe
Processor System
CPU
Support Dual AMD EPYC 7003 and 7002 Series Processors
A BIOS update is required to support AMD EPYC 7003 Series Processors. Please contact ASRock Rack Technical Support for the necessary firmwares.
Socket
1+1 SP3 (LGA4094)
Thermal Design Power
280W
Chipset
System on Chip
System Memory
Supported DIMM Quantity
16+16 DIMM slots (2DPC)
Supported Type
DDR4 288-pin RDIMM, LRDIMM
Max. Capacity per DIMM
RDIMM: up to 64GB, LRDIMM: up to 256GB
DIMM Frequency
RDIMM/ LRDIMM: up to 3200 MHz
Voltage
1.2V
PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
Rear:
8 FHFL dual-slot PCIe4.0 x16 via 4UXG_SWB
PCIe x 8
Front:
1 FHHL PCIe4.0 x8 via 4UXG_SL2P
1 OCP3.0 PCIe4.0 x8 via 4UXG_SL2OCP3
Additional 1 FHHL PCIe4.0 x8 via 4UXG_SL2P is supported by cable re-configuration
TPM
TPM support
1 (17-pin, LPC)
Server Management
BMC Controller
ASPEED AST2500: IPMI2.0 with iKVM and vMedia support
IPMI Dedicated GLAN
1 Realtek RTL8211E for dedicated management GLAN
Graphics
Controller
ASPEED AST2500
VRAM
DDR4 4GB
Rear I/O
UID Button/LED
UID button w/ LED
Power button w/ LED
Reset button
NMI button
System fault LED
HDD activity LED
VGA Port
1 DB15
RJ45
2 RJ45 (10GbE) by Intel X550-AT2, shares with front panel
Dedicate LAN
1 dedicated IPMI LAN, shares with front panel
LED Indicators
80 Debug Port LED
1
System BIOS
BIOS Type
32MB AMI UEFI Legal BIOS
BIOS Features
Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0, ASRock Rack Instant Flash
Hardware Monitor
Temperature
CPU Temperature Sensing
System Temperature Sensing
Card Side Temperature Sensing
Fan
Middle/ Rear Fan Tachometer
Middle/ Rear Fan Multi-Speed Control
Voltage
Vsoc,Vcpu, VCCM, VPPM, +1.8V, +3V,+5V, +12V, BAT, +1.8VSB, +3VSB, +5VSB
Environment
Temperature
Operation temperature: 10^oC 35^oC / Non operation temperature: -40^oC - 70^oC
Humidity
- Non operation humidity: 20% - 90% ( Non condensing)
Item Dimension (L"xW"xH")
44 x 25 x 15

Weight
119 lbs

Warranty Information
1 Year
