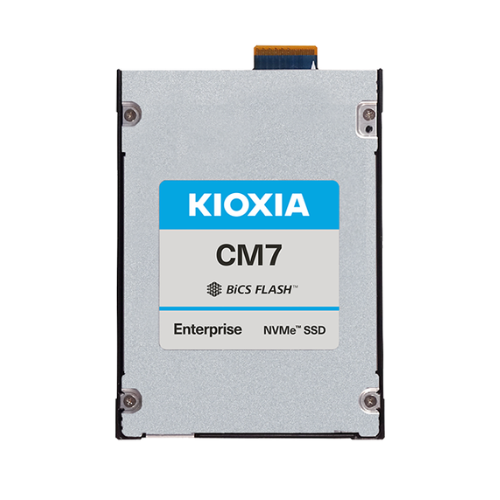

Kioxia CM7-R 3.84TB E3.S PCIe 5.0 SDF4004GEA Base Non-SED SSD

Enterprise NVMe™ Read Intensive SSD


KIOXIA CM7-R Series is a read intensive SSD that is optimized to support a broad range of enterprise applications and associated workloads, including business intelligence, online transaction processing, and software defined storage and virtualization. Built on PCIe® 5.0 and NVMe™ 2.0 technology, the CM7 Series SSDs deliver excellent performance up to 2,700K IOPS (random read) and 310K IOPS (random write).


Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, the CM7-R Series of enterprise NVMe™ SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and support storage capacities up to 15.36 TB, making them ideally suited for read intensive enterprise applications.

Base Non-SED Model

Manufacturer Part Number
KCM71RJE3T84
Capacity
3,840 GB

Basic Specifications
Form Factor
E3.S, 7.5mm thickness

lnterface
PCIe 5.0, NVMe^TM 2.0

Maximum Interface Speed
128 GT/s (PCIe Gen5 single x4, dual x2)

Flash Memory Type
BiCS FLASH^TM TLC

Performance in single port (1x4) mode (Up to)
Sustained 128 KiB Sequential Read
14,000 MB/s

Sustained 128 KiB Sequential Write
6,750 MB/s

Sustained 4 KiB Random Read
2,700K IOPS

Sustained 4 KiB Random Write
310K IOPS

Power Requirements
Supply Voltage
12 V +/- 10 %, 3.3 V +/- 15 %

Power Consumption (Active)
24 W typ.

Power Consumption (Ready)
5 W typ.

Reliability
MTTF
2,500,000 hours

DWPD
1

Environmental
Temperature (Operating)
0 ^oC to 76 ^oC

Temperature (Non-operating)
-40 ^oC to 85 ^oC

Humidity (Operating)
5 % to 95 % R.H.

Vibration (Operating)
21.27 m/s² ( 2.17 Grms ) ( 5 to 800 Hz )

Shock (Operating)
9.8 km/s² ( 1,000 G ) ( 0.5 ms )

Item Dimensions
Thickness

7.5 mm +0.2 / -0.5 mm

Width

76 mm ± 0.25 mm

Length

112.75 mm ± 0.4 mm

Weight
110g Max

Warranty Information
5 Years
